Description

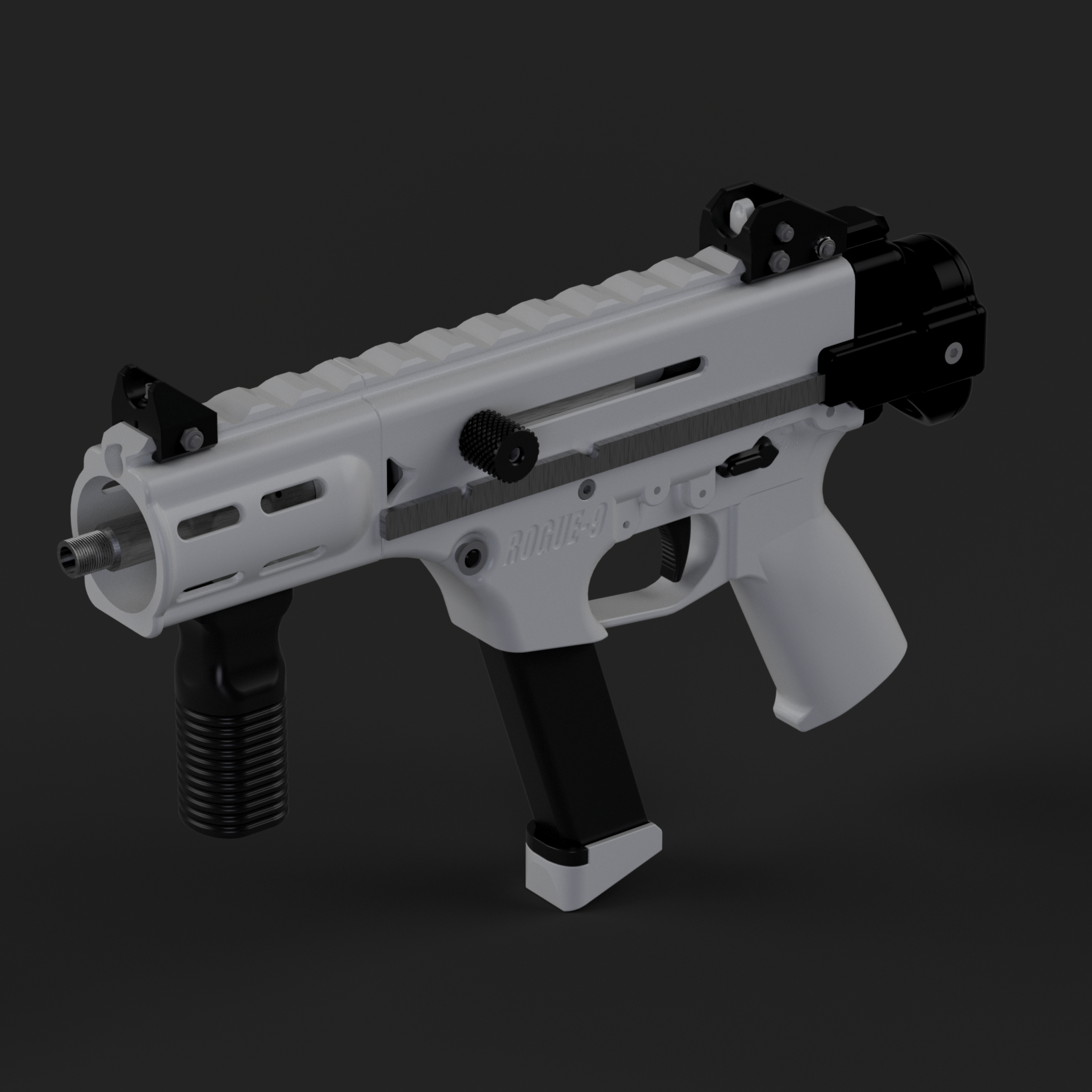

The Rogue-9 is a fully-DIY 9mm carbine that makes use of a highly innovative DIY bolt, and is at this time the most advanced 3D-printed gun yet released.
This product provides the majority of hardware required to build a Rogue-9. This includes:
- All nuts, bolts and springs to kit out the upper, lower, FCG and brace
- All nuts, bolts and other parts required to kit out a completed bolt body
- This includes the raw parts required to fabricate the firing pin, extractor,
- All shaft collars and other parts required to kit out an ECM barrel
This kit does not contain the following:
- A milled Rogue-9 bolt body
- A barrel
- Any tools or parts used to facilitate making a bolt body (e.g. drills, endmills, bushings, stock, etc.)
- Any parts required to create a suppressor or to facilitate select fire
Rogue-9 bolts and kits to support milling bolts and creating ECM barrels will be offered in the future.
The BOM for this kit is below:
| Part # | Part Name | Part Description | Quantity |
|
General Hardware
|
|||
| G1 | Steel flats | Bars to attach sliding stock | 2 |
| G2 | 4mm dowel | splash guard / cleanup | 1 |
| G6 | 4mm dowel | Front aligning pin | 1 |
| G7 | 4mm dowel | Front aligning pin | 1 |
| G8 | 4mm dowel | Aligning crosspin (rear) | 1 |
| G9 | 4mm dowel | Mag catch pin | 1 |
| G10 | 4mm dowel | Rear aligning pin | 1 |
| G11 | 4mm dowel | Rear aligning pin | 1 |
| G12 | 4mm dowel | Stock latch pin | 1 |
| G14 | 4mm rod | Spare | 1 |
| G15 | 3mm dowel | Trigger pin | 1 |
| G17 | 3mm dowel | Hammer pin | 1 |
| G18 | 3mm dowel | Selector detent | 1 |
| G19 | 3mm rod | Spare | 1 |
| G20 | 3mm dowel | Trigger installation aid pin | 1 |
| G24 | 1mm piano wire | Antiwalk spring | 1 |
| G25 | 1mm piano wire | Antiwalk spring | 1 |
| G26 | 1mm piano wire | Antiwalk spring | 1 |
| G27 | 1mm piano wire | Antiwalk spring | 1 |
| G28 | 1mm piano wire | Disconnector spring | 1 |
| G29 | 1mm piano wire | Trigger spring | 1 |
| G30 | 1mm piano wire | Trigger spring | 1 |
| G31 | 1mm piano wire | Extra for making springs, spare | 1 |
| G32 | 8mm steel rod | Hammer weight | 1 |
| G34 | M4 threaded rod | Upper rods (cut beyond longest length) | 3 |
| G35 | Stainless steel capillary tube | Recoil spring sleeve | 1 |
| G36 |
Small recoil spring
|
1 | |
| G37 | Big recoil spring | 1 | |
| G38 |
Selector detent spring
|
1 | |
| G39 |
Mag release spring
|
1 | |
| G40 |
Stock button spring
|
1 | |
| G41 | M3x16mm socket head | Feedramp screw | 1 |
| G42 | M4x20mm socket head | Ejector | 1 |
| G43 | M4x25 button head | Stock button screw | 1 |
| G44 | M4x16mm countersunk | Secure stock to stock bars | 2 |
| G45 | M6x12mm cup point set screw | Replacement for one of the barrel shaft collars, makes alignment pin | 1 |
| G46 | M4x6mm flat point set screw | Selector retainer (DIY FCG lower) | 1 |
| G47 | M4x10mm flat point set screw | Selector retainer (AR-15 lower) | 1 |
| G48 | M4 washers | 2x endcap, 1x upper, remaining are spares | 7 |
| G49 | M4 nut | For upper threaded rods,1 spare | 7 |
| G50 | M4 flange nut | Barrel retainer | 3 |
| G51 | 28mm OD, 16mm ID shaft collar | Barrel shaft collar | 2 |
| G55 | M3x28mm button head | Printable sights | 1 |
| G56 | M4x30mm socket head | Printable sights | 3 |
| G57 | M4x12mm set screw | Printable sights | 1 |
| G58 | M3 lock nut | Printable sights | 1 |
| G59 | M4 lock nut | Printable sights | 3 |
| G60 | M3x7mm washer | Printable sights | 2 |
| G62 | Sawzall blade 24/25tpi | Ejector | 2 |
| G63 | Glock mag spring | Magazine | 1 |
| Tooling Parts | |||
| TP1 | 6mm steel rod | Winding jig | 1 |
| TP2 | 3mm dowel | Winding jig | 1 |
| TP3 | 3mm dowel | Winding jig | 1 |
| TP4 | M4x20mm socket head | 1x winding jig | 1 |
| TP5 | M4x16mm countersunk | Secure sawzall in jig | 1 |
| TP6 | M4 washers | Winding jig | 1 |
| TP7 | 3mm dowel | Cleanup, general purpose | 1 |
| TP8 | 4mm dowel | Cleanup, general purpose | 1 |
| Bolt Hardware | |||
| B1 |
FP / extractor retaining pin
|
1 | |
| B2 | FP spring | 1 | |
| B3 | M6x70mm socket head | ABB bolts | 2 |
| B6 | Mild steel tube | ABB weights | 1 |
| B7 | M6x30 dowel nut | Retains recoil spring, guides bolt | 1 |
| B8 | M5x40mm socket head | Charging handle | 1 |
| B9 | 4mm dowel | ABB spacer | 1 |
| B10 | 4mm dowel | ABB spacer | 1 |
| B11 | 4mm dowel | Charging handle spacer | 1 |
|
Bolt Accessories DIY Stuff
|
|||
| BD1 |
M4x90mm socket head
|
3 | |
| BD2 |
M5x90mm socket head
|
2 | |
| BD3 |
M4x20mm socket head
|
2 | |
| BD4 |
M3x16mm socket head
|
1 |
